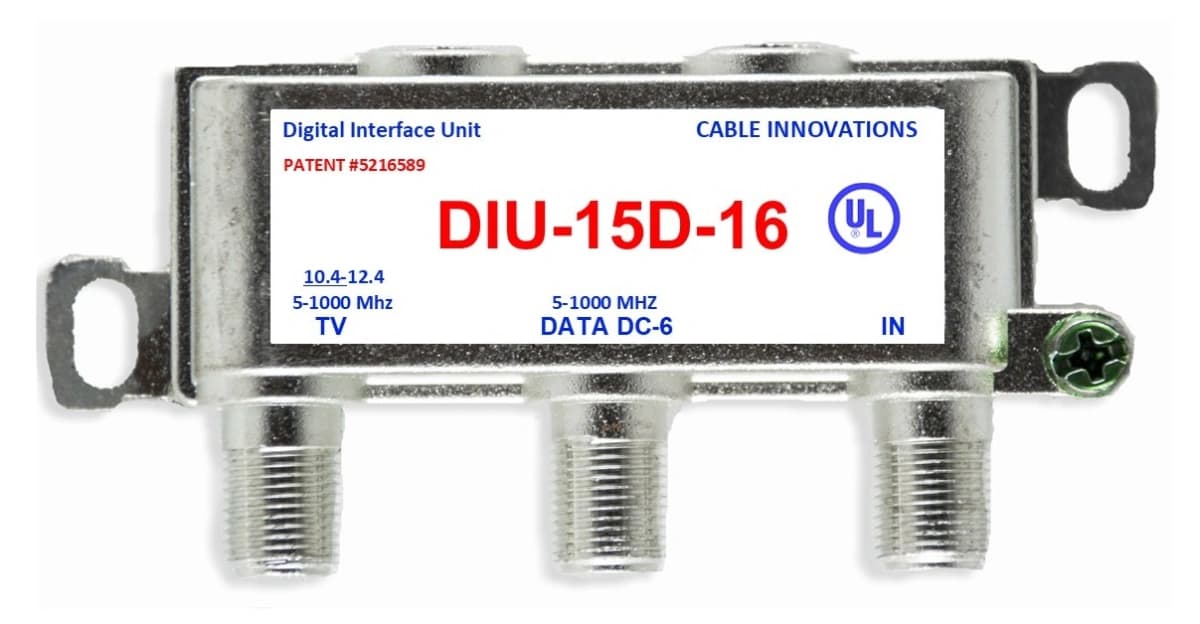

Digital Interface Unit (DIU)
DIU-16
Configuration
- •ALL PORTS Solid State Surge Suppressor
- •PORT 1 10.4 -12.4 MHZ Filter
- •PORT 2 (data) 5-1000 MHZ , DC-6
Protect
Set top boxesModemsSubscriber ElectronicsDrop amps.Drop passives
A typical drop installation includes a ground block or surge suppressor, a splitter or directional coupler, and a high-pass or window filter. These components are interconnected with coaxial cables. The DIU replaces this collection of individual components with a single integrated unit.
Applications
- Any drop used in place of ground block
Features
- High speed solid state surge protection, for reliability and durability
- Handles 500 Amps.
- Dual direction protects to and from the house
- Power Passing (2 amps
